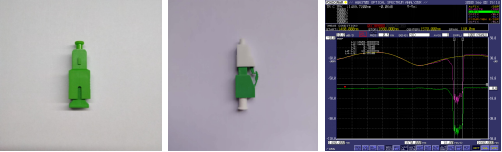

SC/APC单向反射器

FBG:1650±5nm Fiber grating reflector

Product description/产品描述

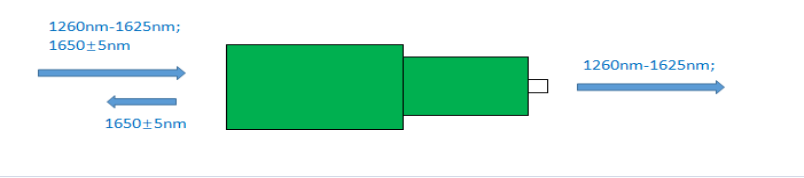

光纤光栅滤波器（反射器）是一种通过光栅实现特定波长类似镜面反射功能的器件，原理相当于带通滤波器,拥有极高的反射效率，良好的波长截止特性，并且可以根据客户的需求进行定制化生产。

Fiber grating filter (reflector) is a kind of device which can realize mirror reflection function in specific wavelength through grating. It is equivalent to band-pass filter, has high reflection efficiency and good wavelength cut-off characteristic, and can be customized according to customer needs for production.

      Main characteristics/主要特性

      LOW INSERTION LOSS插入损耗低

      High reflective power反射功率高

      The structure is stable and reliable结构稳定可靠

      Long Service Life使用寿命长

      Application scenario/应用场景

      FTTH

      ONT/ONU

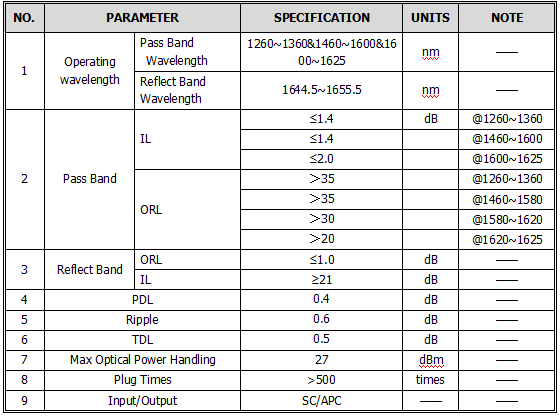

      Specification parameter规格参数

      Other packaging methods/其它封装方式

      Other reflection wavelengths/其它反射波长

      1625±5nm  Fiber grating reflector

      1577±5nm  Fiber grating reflector

      1550±5nm  Fiber grating reflector

      Other custom wavelengths
